Focus on developing proteins with bioactivity
Immune checkpoints proteins
Time:2020-07-29
Immune checkpoints are regulators that can inhibit or activate our immune system. They play essential roles in maintaining immune tolerance and modulating the duration and strength of immune responses. Cancer cells can exploit inhibitory pathways to evade the attack from immune system, especially antigen-specific T cell responses.

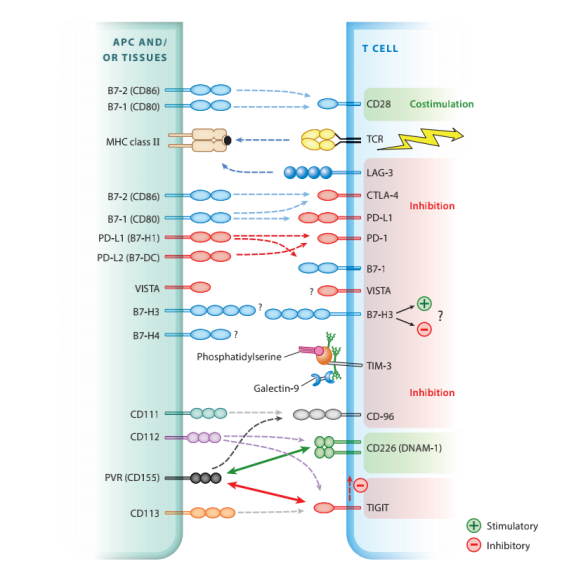

(Source: Reference[1])
In recent years, FDA has approved a number of therapeutic monoclonal antibody drugs that target on the inhibitory pathway of immune checkpoints, such as OPDIVO, KEYTRUDA, Ipilimumab, etc. Comparing with traditional Chemotherapy, radiation therapy or targeted therapy, the clinical benefits of immune therapy treatment are astonishing. Pharmaceutical companies start to adjust their R&D pipelines and put more resources on immune checkpoint projects.
To help customers accelerate their study on immune checkpoint targets, DIMA BIOTECH developed a series of high-quality recombinant proteins on immune checkpoint targets . All these proteins are manufactured in HEK293 cells. It is very likely that these recombinant proteins will maintain three-dimensional structure close to native proteins and the authentic post-translational modifications specific to human cells.

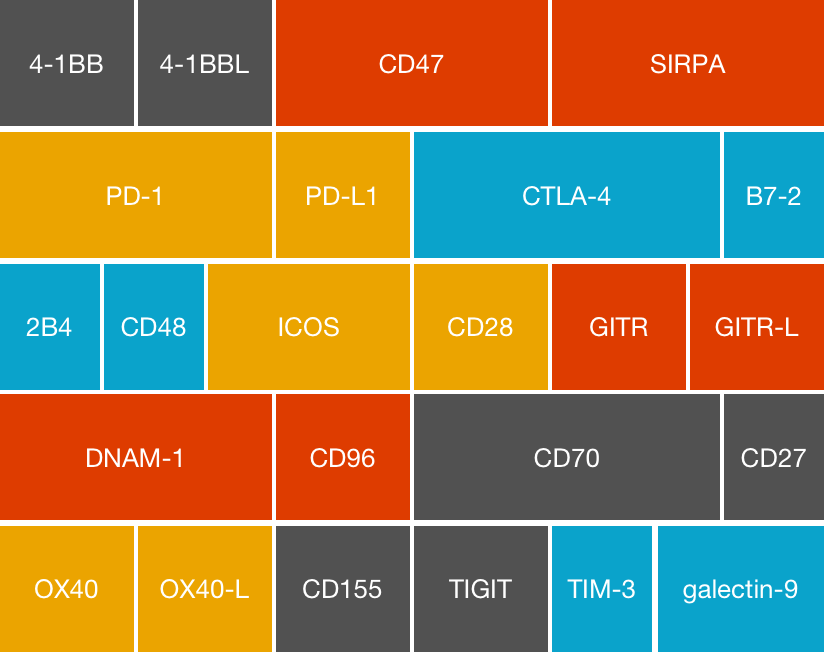

Part of our product
For DIMA BIOTECH, one of our long term goals is to provide biologically active recombinant proteins for all immune checkpoint targets. Here we would like to encourage you to nominate targets that you would like to prioritize in our development pipeline.
Product Features
1. Protein purity evaluation:
Figure 1.A) Human SIRPα, hFc-His Tag on SDS-PAGE under reducing condition(PME100009). B) Human CD47, mFc-His Tag on SDS-PAGE under reducing condition(PME100008).
2. Ligand-receptor interaction evaluation:

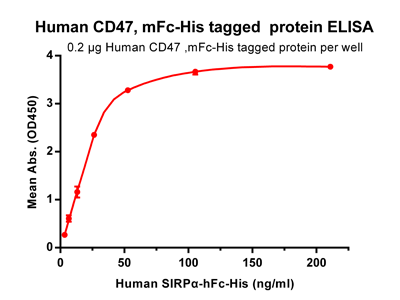

Figure 2. ELISA plate pre-coated by 2 ug/ml (100 ul/well) Human CD47, mFc-His tagged protein (PME100008) can bind its native ligand Human SIRPα, hFc-His tagged protein (PME100009) in a linear range of 3.3-26.37 ng/ml.
3. Biosimilar antibody interaction evaluation

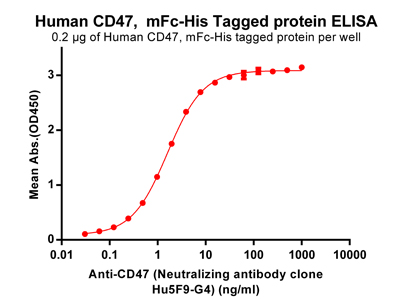

Figure 3. ELISA plate pre-coated by 2 ug/ml (100 ul/well) Human CD47, mFc-His tagged protein (PME100008) can bind Anti-CD47 (Neutralizing antibody clone Hu5F9-G4)(BME100001) in a linear range of 0.061-1.606 ng/ml.
Rigorous quality testing
Every batch of recombinant proteins are under rigorous quality testing to make sure the protein stability.
1. Stability test 1: Ligand-receptor interaction testing after multiple freeze-thaw cycles

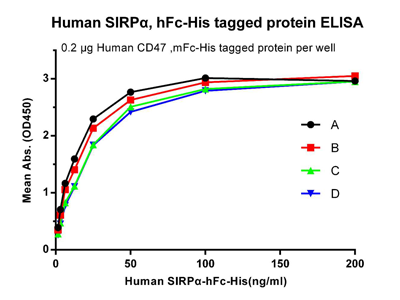

Figure 4. Human SIRPα, hFc-His tagged protein without freeze-thaw treatment. B: Human SIRPα, hFc-His tagged protein after one freeze-thaw cycle. C: Human SIRPα, hFc-His tagged protein after three freeze-thaw cycles. D: Human SIRPα, hFc-His tagged protein after five freeze-thaw cycles.
2. Stability test2: Protein integrity analysis after multiple freeze-thaw cycles

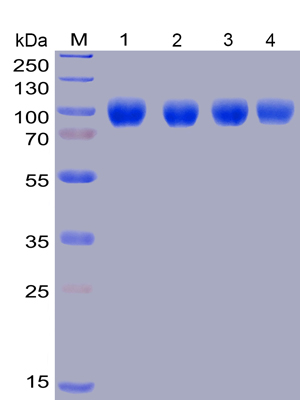

Figure 5. Lane 1: Human SIRPα, hFc-His tagged protein without freeze-thaw treatment, Lane 2: Human SIRPα, hFc-His tagged protein after one freeze-thaw cycle, Lane 3: Human SIRPα, hFc-His tagged protein after three freeze-thaw cycles, Lane 4: Human SIRPα, hFc-His tagged protein after five freeze-thaw.
Research grade biosimilar antibody promotion:
With DIMA’s biosimilar antibodies for research, you can study the biological effects of therapeutic antibody drugs without large spending on thereutic grade products. We have validated all these research grade biosimilar products with their target proteins.
1. The ELISA binding testing of Cobolimab biosimilar antibody and recombinant TIM3 protein

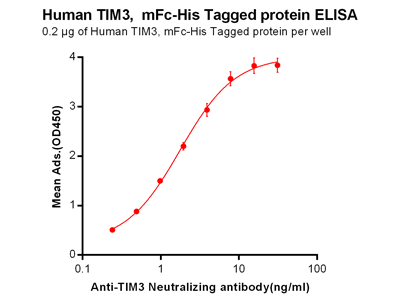

Figure 6. ELISA plate pre-coated by 2 ug/ml (100 ul/well) Human TIM3, mFc-His tagged protein (PME100030) can bind Anti-TIM3 Neutralizing antibody (Cobolimab) in a linear range of 0.24-7.81 ng/ml.
Recombinant biosimilar antibody products
Therapeutic Antibody | Antibody Specificity | DIMA catalog# |
---|---|---|
Magrolimab | Anti-CD47 mAb | BME100001 |
Elotuzumab | Anti-CS1 mAb | BME100002 |
Talacotuzumab | Anti-CD123 mAb | BME100003 |
Daratumumab | Anti-CD38 mAb | BME100004 |
Vorsetuzumab | Anti-CD70 mAb | BME100005 |
Pembrolizumab | Anti-PD-1 mAb | BME100006 |
Siltuximab | Anti-IL6 mAb | BME100007 |
Cobolimab | Anti-TIM-3 mAb | BME100008 |
Buy recombinant proteins with free biosimilar antibodies, please contact us for the details.
Email: info@dimabio.cn
Reference
[1]Baumeister, Susanne H., et al. “Coinhibitory pathways in immunotherapy for cancer.” Annual Review of immunology 34 (2016): 539-573.
